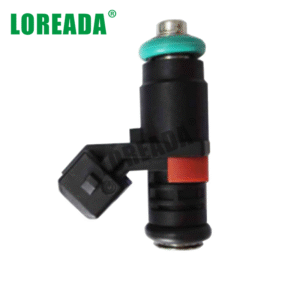

MEV15-001
Part Number:MEV153075-00
resistance:12
static flowrate (g/min@3Bar/TYH4):75
spray angle:α 15
| Operating Environment | |
| Operating Temperature | -40℃-+125℃ |
| Permission Fuel Temp. | ≤+70℃ |
| Corosion Resistance | QC/T416-2002 |
| Working Medium | Gasoline，E20 |
| Basic Parameter | |
| Fuel Pressure | 2 bar – 4.5 bar |
| Flow Rate @ 3 bar | 40g/min-300g/min |
| Spray Type | Pencil Beam/Conical Spray/2-Spray |
| Coil Resistance | 12Ω-14.5Ω |
| Min. and Max. Voltage Supply | 7V-16V |
Common Failure and Troubleshooting Methods
A:If the fuel injector does not inject fuel. There are carbon deposits and glue in the injector.
Clean the fuel injector by ultrasonic cleaning or alcohol, the fuel needs to be replaced with clean fuel.
B: If the injector flow rate is decreased, it is possible that the fuel is mixed with impurities orthe inferior filter element is used to block the injector’s filter.
The injector’s filtershould be replaced and replaced the fuel and fuel filter that meet the standard.
C: If the leakage at the O-ring that causes by incorrect installation or damage,replace a new O-ring.
D:If the injector is dripping, foreign materials may cause the injector valve spool to bestuck and cannot be closed, a new injector should be replaced.
